electriQ Iqool Multi-Split 3 x 9000 BTU Smart Wall Mounted Heat Pump Air Conditioner Bundle - Three Indoor Units Single Outdoor Unit and Pipe Kits Included

SKU: iQool-3MS9K9K9K Quickfind Code: 1344510

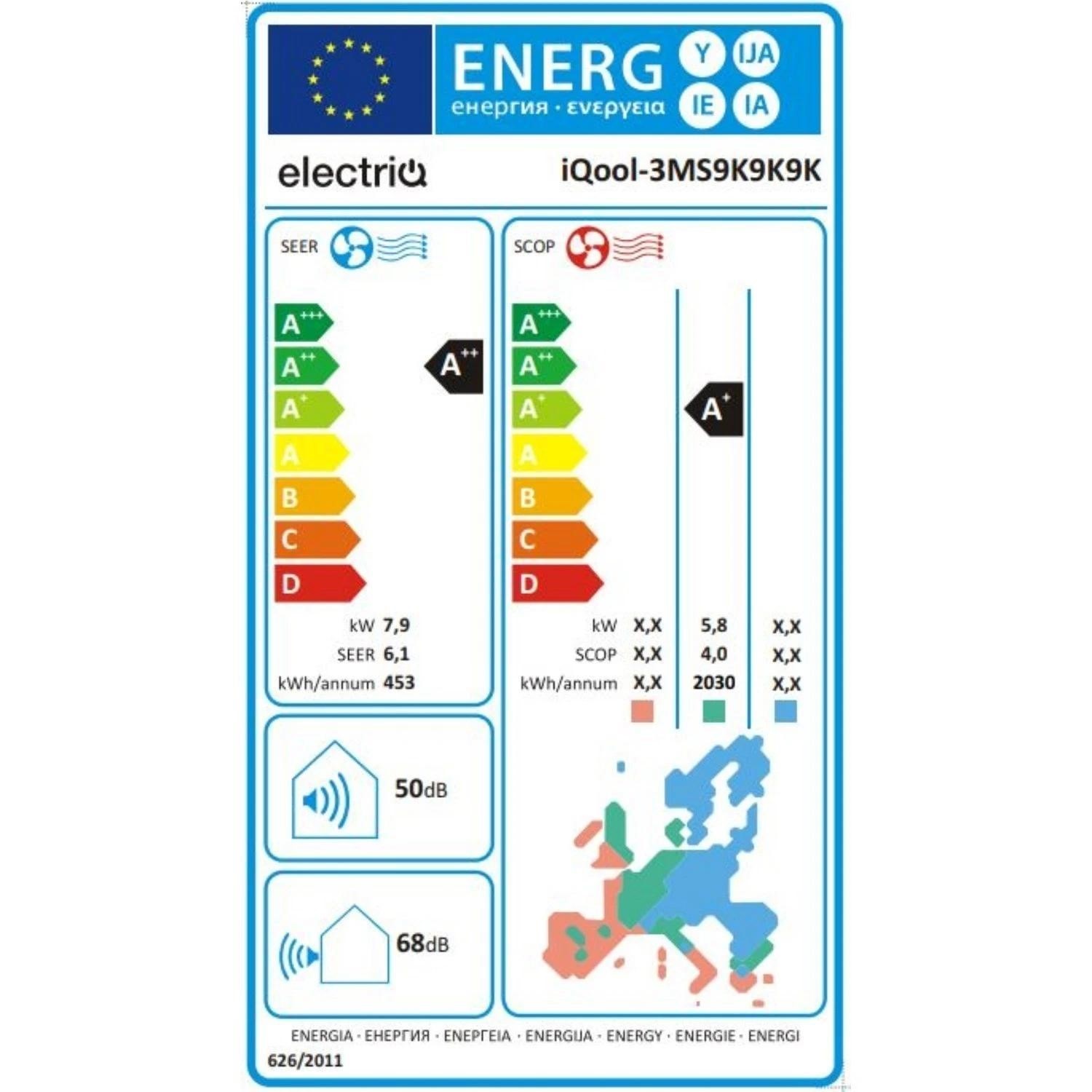

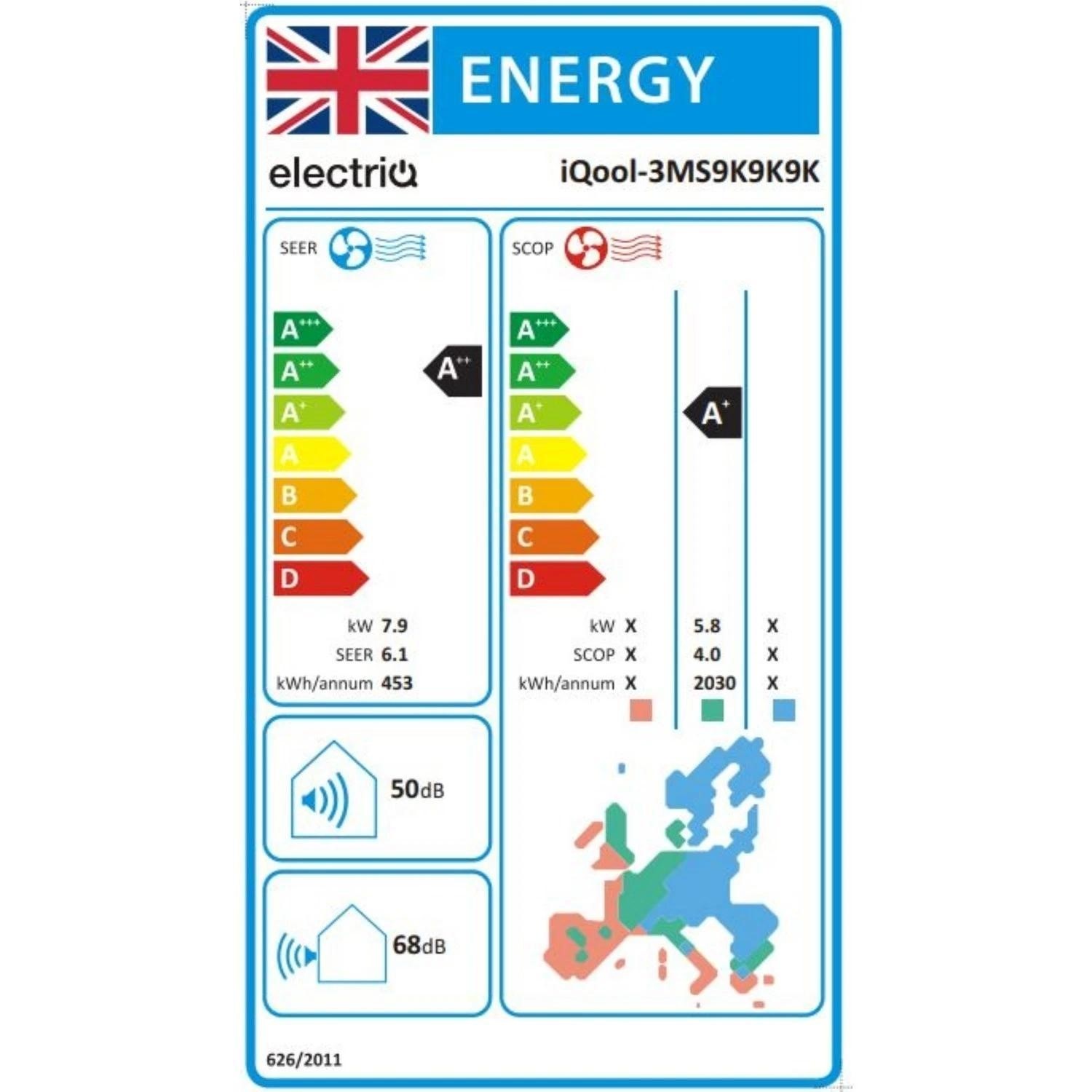

Energy Label
Was: £1499.97     You save: £99.99
Product Options
Room Size
Why buy me
  • Controls the climate of 3 rooms from just a single outdoor unit
  • Outputs 3x9,0000 Btu/h (variable speed inverter) cooling and heating
  • A++/A+ Rating 2019 ERP
  • Super DC Inverter with Panasonic compressor
  • Cooling, Heating & Dehumidifying
  • Easy Fit with 5 meter pipe and cable kit supplied as standard (optional 10 meter pipe kit available)
  • Energy Saving Inverter Technology
  • Heat Pump for efficient heating
3 in 1


Unlike conventional split air conditioners that require a separate outdoor compressor unit for every room, this advanced multi-split air conditioner system is designed to power three rooms from a single compressor. This not only improves both outdoor space and external aesthetics, it also saves on expensive installation and running costs too. Plus, each indoor unit has its own remote control, allowing for individual control of both air conditioning units.

heat and cool


The stylish unit is an air conditioner for all seasons. It features both a heating and cooling mode to help you remain toasty in the winter, and cool in the summer. Plus, there's even a built-in dehumidifier that helps remove excess moisture from the air to create a healthier environment, and is great for drying your damp laundry indoors when it's raining out. The electriQ multi split Air Conditioning System comes with an impressive 5 year warranty.

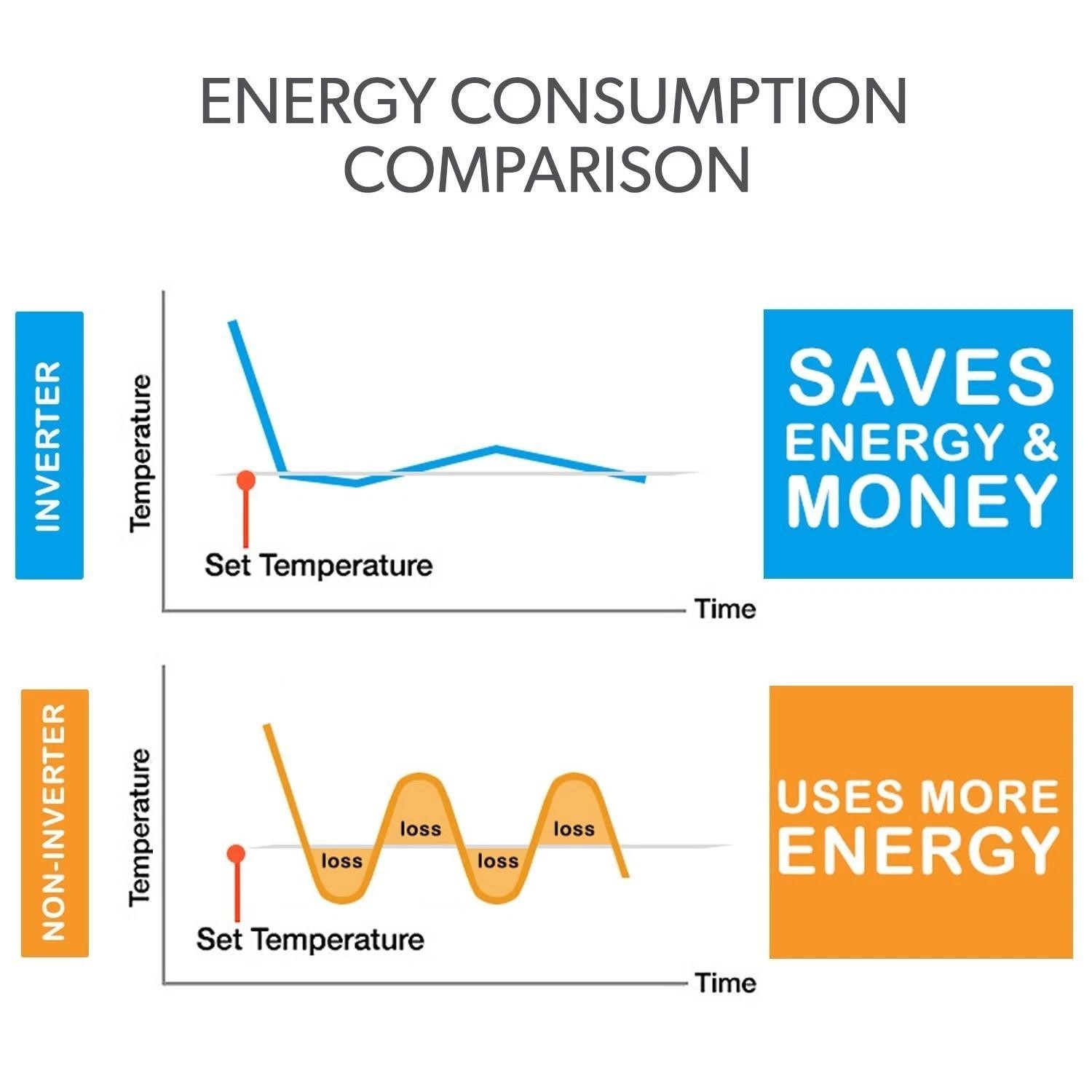

This cost-effective, energy-efficient system will economically cool or heat rooms up to 65 sqm in size. It boasts the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, thus saving you between 40%-60% on your energy bill when compared with a non-inverter equivalent which has fixed compressor speed. It also has the added advantage of being exceptionally quiet so you will forget it is even there.




  • Controls the climate of 3 rooms from just a single outdoor unit
  • Outputs 3x9,0000 Btu/h (variable speed inverter) cooling and heating
  • A++/A+ Rating 2019 ERP
  • Super DC Inverter with Panasonic compressor
  • Cooling, Heating & Dehumidifying
  • Easy Fit with 5 meter pipe and cable kit supplied as standard (optional 10 meter pipe kit available)
  • Energy Saving Inverter Technology
  • Heat Pump for efficient heating
  • Ultra Quiet Operation

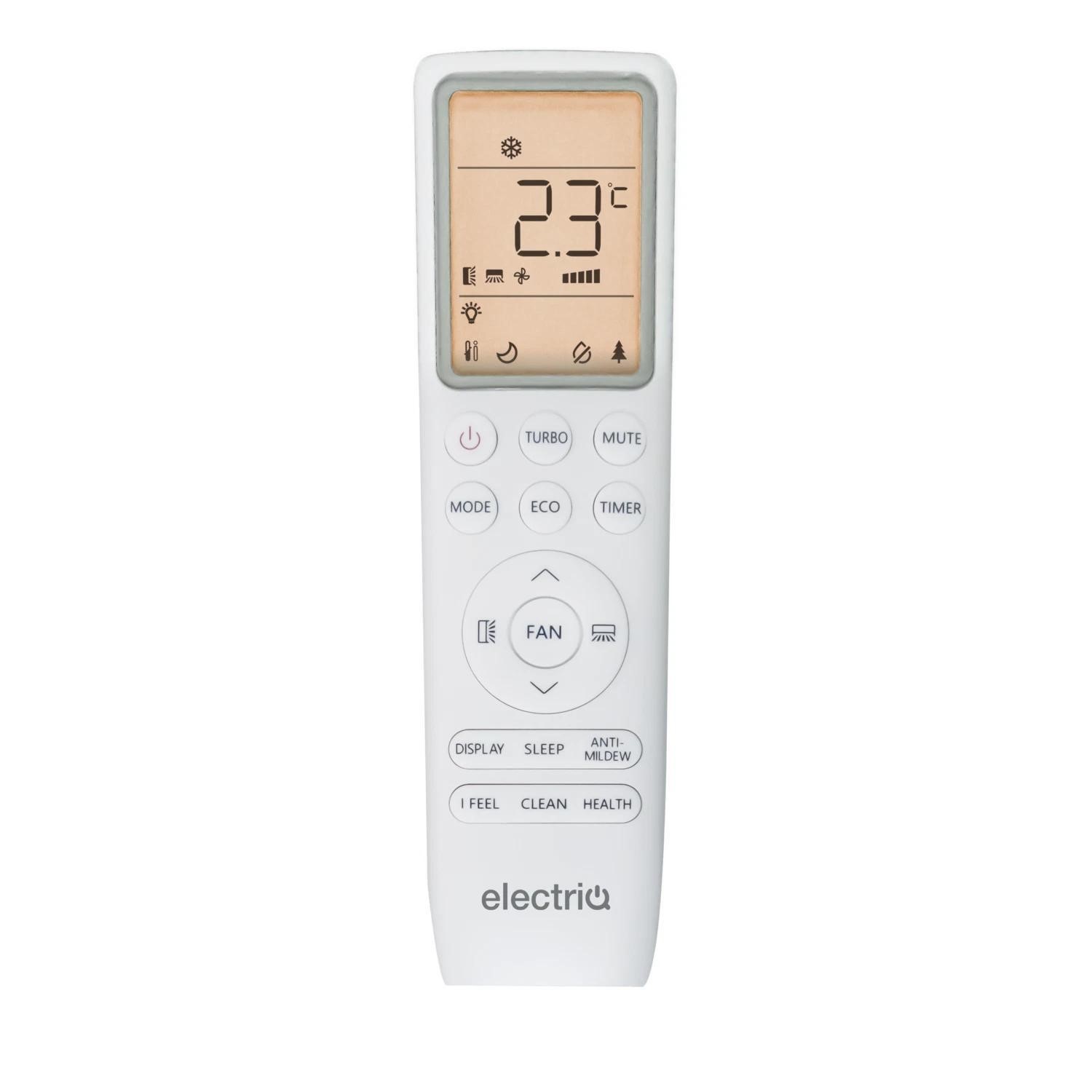

  • Remote control for each indoor unit

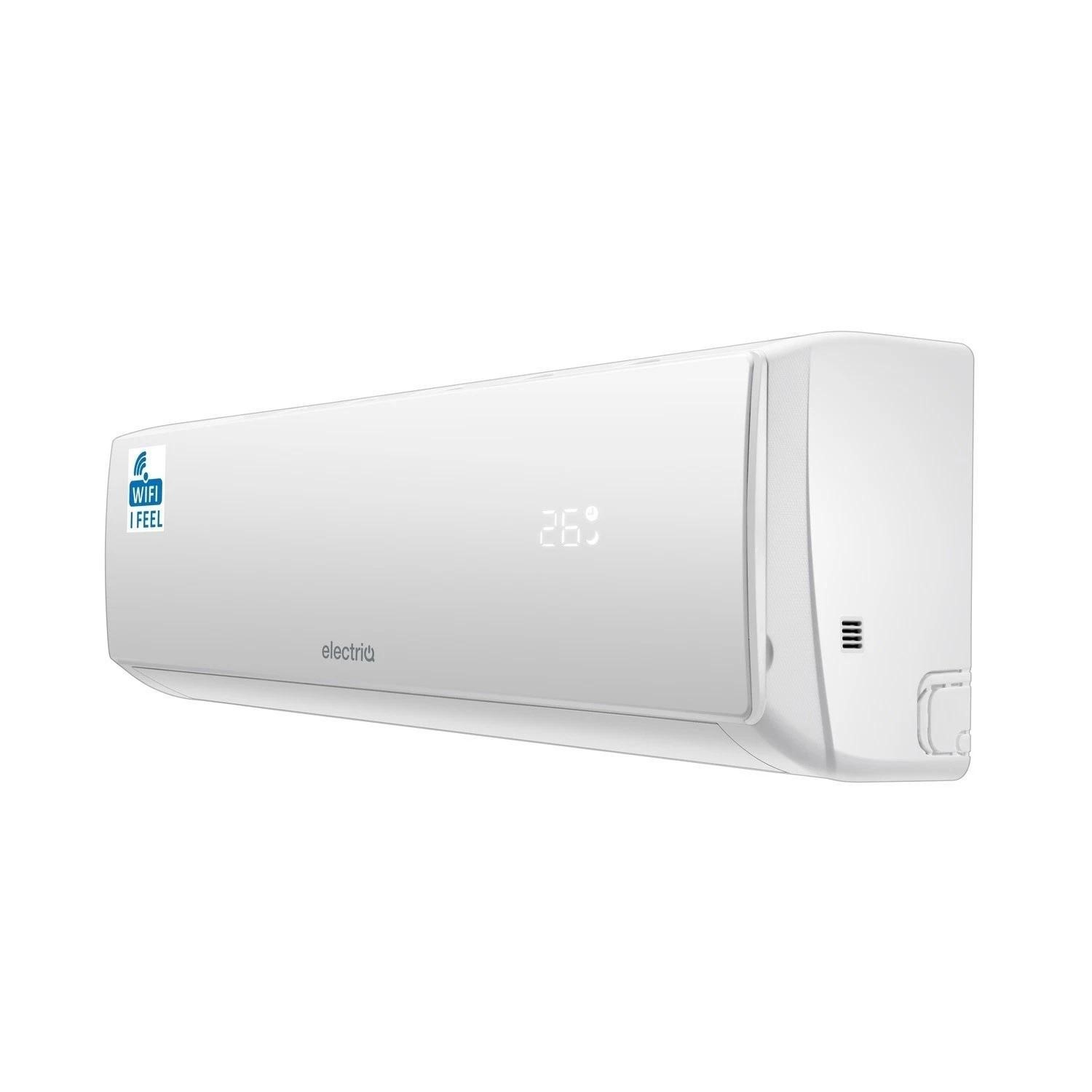

  • Digital White Led temperature and function display
  • Cooling capacity (single unit): 2.65 kW
  • Heating capacity (single unit): 2.65 kW
  • Cooling capacity (total 3 units): 2.8-8.8 kW
  • Heating capacity (total 3 units): 2.45-8.8 kW

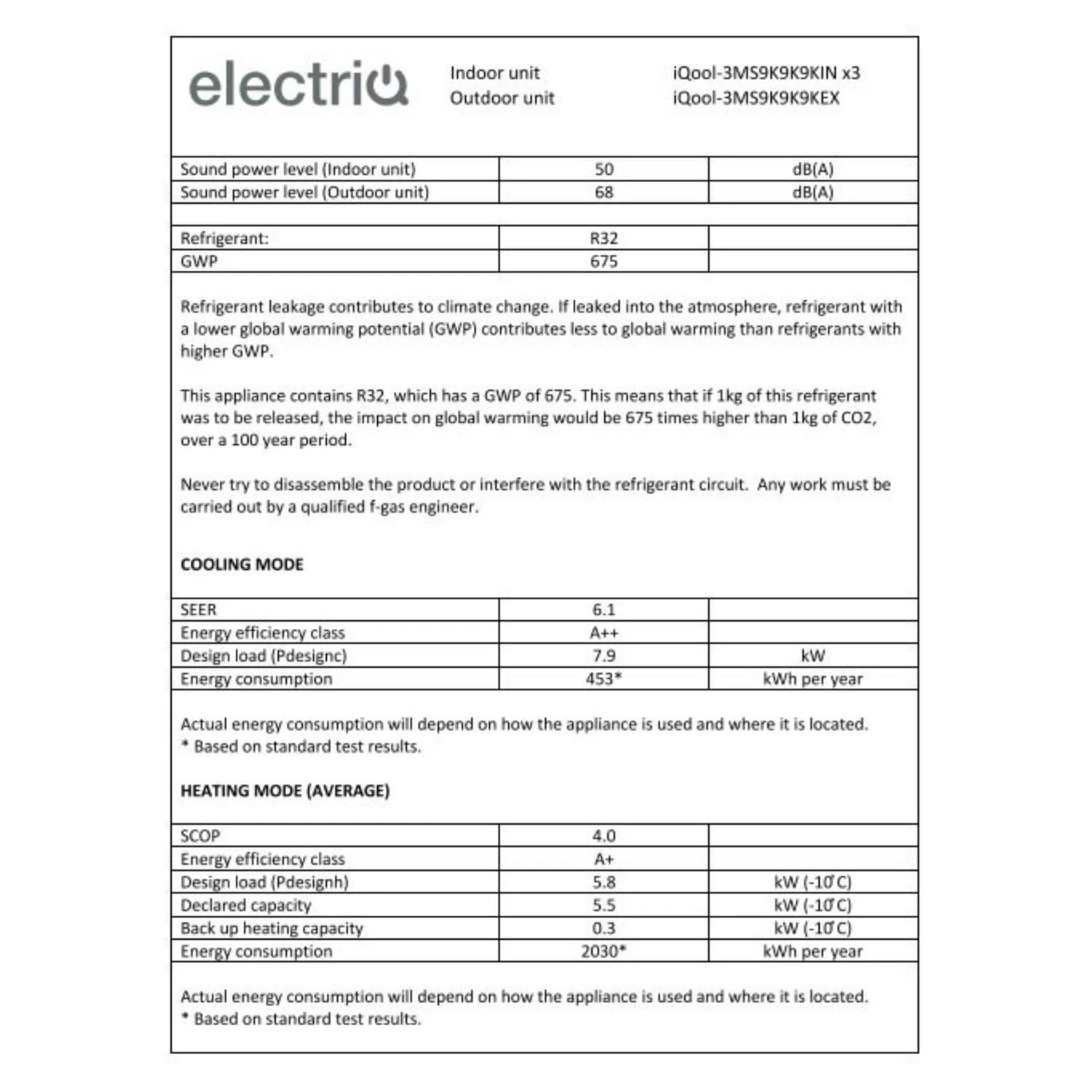

  • SCOP: 5.1 A++ / SEER: 6.1 A+
  • Warranty: 2 years parts & labour+3 years parts
  • 24 Hour Timer
  • Self-diagnostic function
  • Sleep Mode
  • Auto Restart


  • L x W x H: 77.7 x 20.5cm x 25cm (per indoor unit)
  • L x W x H: 96.8 x 37.5 x 65.5cm (outdoor)
  • Net/Gross Weight: 8 / 10.5(indoor)
  • Net/Gross Weight: 46 / 51(outdoor)

What's in the box?

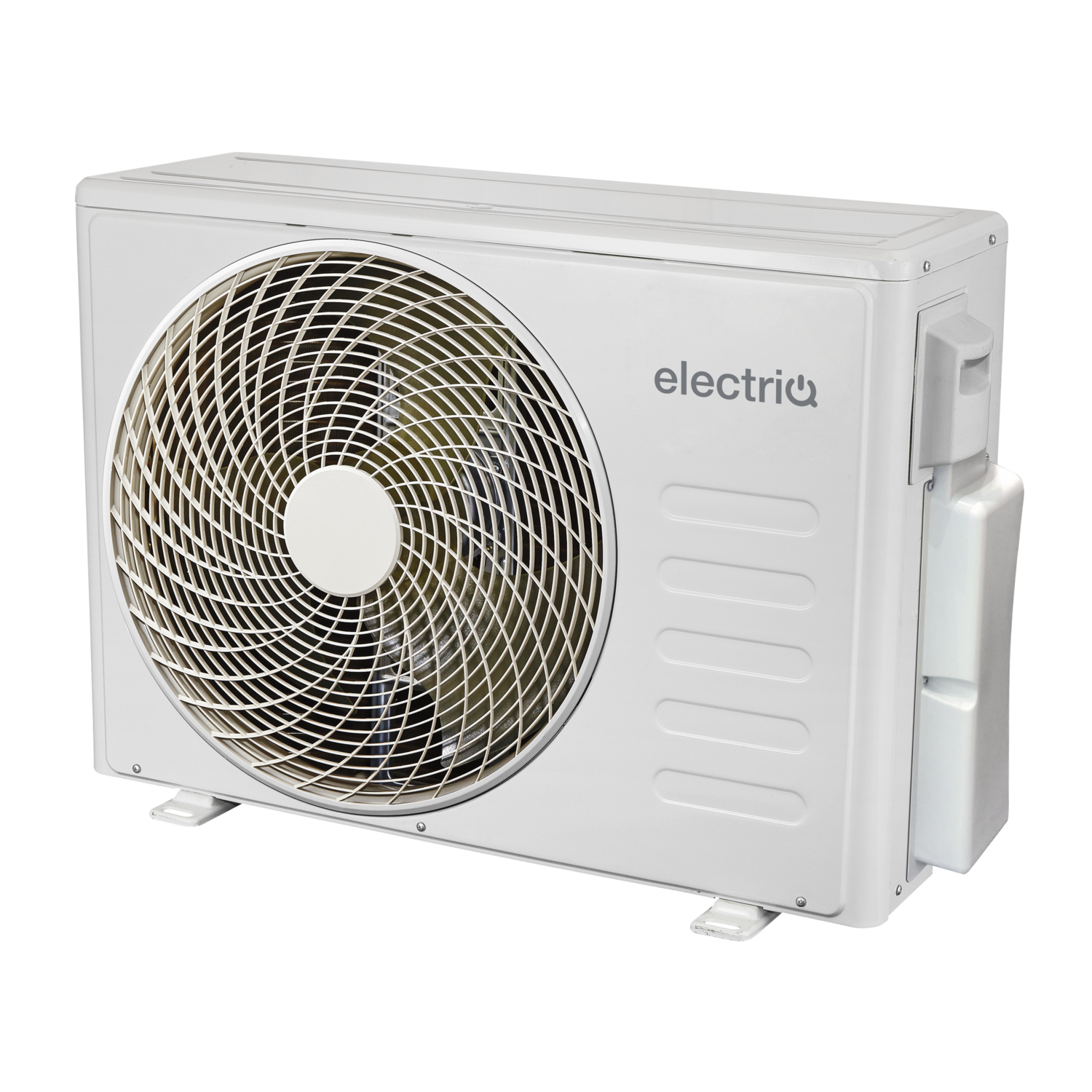

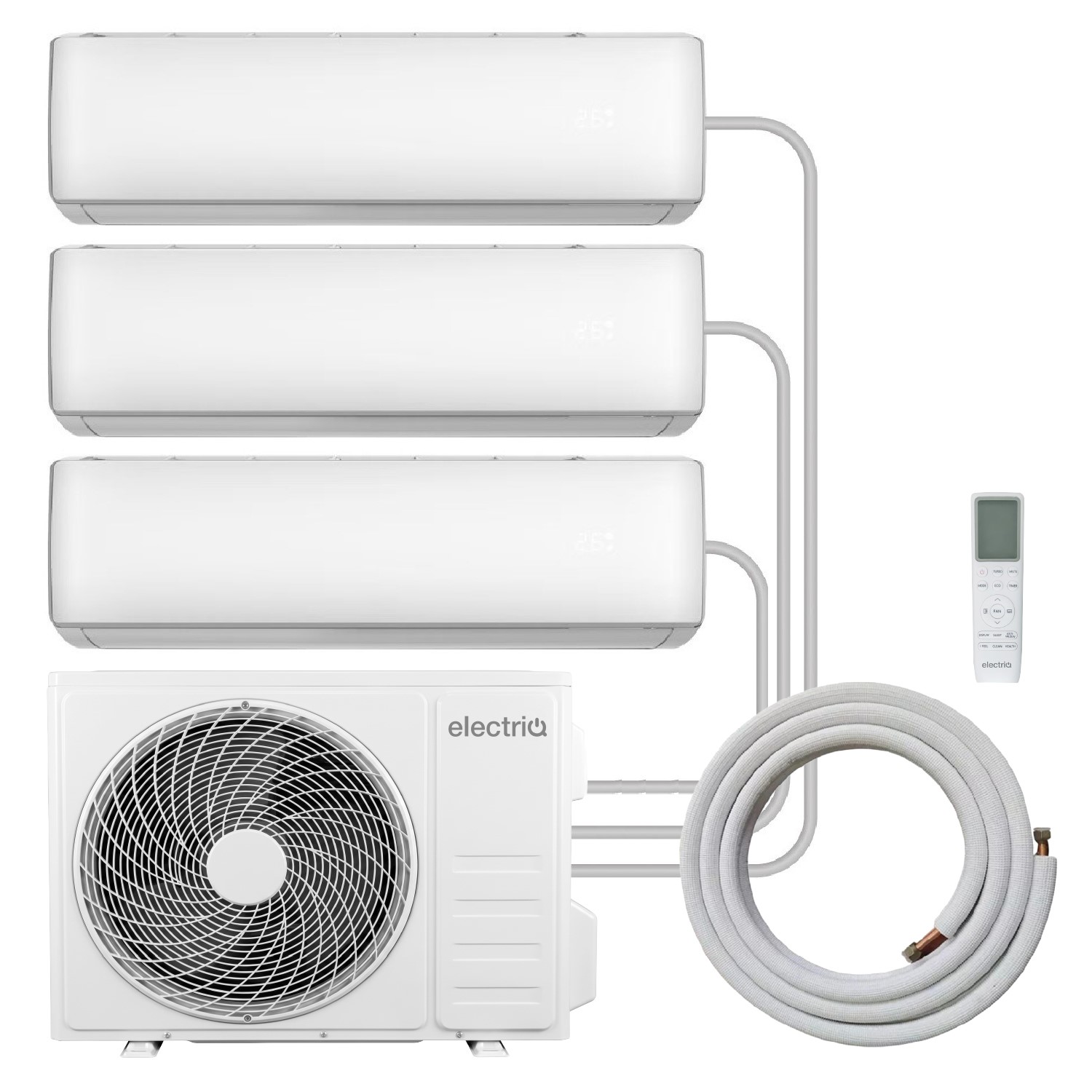

The iQool-3MS9K9K9K is an easy Install DC Inverter and is comprised of 4 main units (3 indoor units iQool-3MS9K9K9KIN & 1 outdoor unit iQool-3MS9K9K9KEX). There are three internal units which are mounted on the wall of the room/ rooms you wish to cool supplied with indoor wall brackets, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required ) on the outside. Also in the box is a 5 meter coil of interconnecting copper pipe, electrical cable and a remote control.

How to Install

Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipekit enabling the qualified fitter to easily install them. The indoor units should be fitted to the wall using mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5 metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with electrical cable. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing.

How does it work?

The outside unit takes the heat from the room, along with any condensation that may have built up in the system, and dissipates it outside. The iQool-3MS9K9K9K internal units set the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.

*These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2 year warranty is subject to commissioning by qualified F-Gas engineers. 5 years extended parts warranty is subject to annual service. Further information on the requirements and ensuring the engineer is qualified can be found at: Government Guidance

What is a BTU?

1 BTU is the amount of heat required to raise the temperature of one pound of liquid water by one degree from 60° to 61° Fahrenheit at a constant pressure of one atmosphere. As a general rule we advise you to buy an Air Conditioner with a minimum 3,000BTUs as this is the minimum required to cool a small room (10sq/m) on a hot day. Medium rooms (24sq/m) need around 10,000BTUs and larger rooms and office spaces (36sq/m) require around 15,000BTUs.

* Note: In order to reduce the Global Warming Potential, the outdoor unit footprint and provide extra energy savings; our outdoor units have a rating lower than the sum of indoor units BTU. Please note this will not affect the cooling or heating in individual rooms as those units are variable cooling inverters and they balance the cooling or heating power among the indoor units to achieve the target temperature in the shortest time. Please make sure you size the rooms as per our guidance or call for tech support.

Key Information
Brand electriQ
Type Wall mounted
Split Type
Multi split air cons connect a number of indoor units to one outdoor unit, to cool more than one room while saving space and running costs. Single room split air con units have one indoor unit connected to an outdoor system. Air cons with no outdoor unit are vented straight through the wall, making them perfect for anywhere outdoor space is difficult to access.
Refrigeration Gas
R290 is an energy-efficient refrigerant, an eco-friendly alternative with zero ozone depletion potential (ODP). R290 does also not require installation by an F-Gas certified engineer, whereas R32 requires installation by an F-Gas certified engineer.
For quicker installation
Pipe Kit Included
No need to buy an extra kit for installation
Maximum Cooling Area (m2) 56sqm
Cooling Power (BTU)
The maximum cooling power of your air con in British Thermal Units. The greater the BTU, the larger the space the unit can cool.
Cooling Power (kW)
The maximum cooling power of your air con in kilowatts. The greater the kW, the larger the space the unit can cool.
Power Supply (V/hz) 220-240V/50hz
Energy Rating A++/A+
Lowest Temperature 16Degrees
Noise level
How loud your Air Con is. A normal conversation is about 60dB
Colour White
Condition New
Warranty (year) 2
Timer Programmable
Heating Function
Heat pump for efficient heating, perfect for year round use
controls Electronic
Can be operated or scheduled using your smart phone or tablet.
WiFi Built-in
Removes moisture from the air in your home, for a more comfortable humidity level. Reduces mould and mildew.
Dimensions & Weight
Max. Hose Length 15Metres
Power cord length 1.5Metres
Pipe Kit Length 5Metres
Weight 10.5kg
Height 25cm
Width 78cm
Depth 21cm
Suitable For
Server Room
Includes venting kit for server rooms.
Industrial Space

To add to your order, simply select "Add to Order" and then add your product to basket as normal.

Question from Abs: Asked on 10/01/2023 Do you provide Installation

Answer from Rebecca: Answered on 20/01/2023

Hi Abs,

Thanks for getting in touch.

Yes we provide installation, please find details below:


Hope this helps.



Question from Thamina: Asked on 19/07/2021 Do you provide fitters (extra cost) to fit the air cons in ?

Answer from Marek: Answered on 19/07/2021

Hello! We do, and the price depends on your location! You can add installation once you're in the checkout, or you can call us on 0330 041 2742. You can ask more questions about the product or our services through the phone, place an order, and book your installation date! I hope it helps! Thank you!

Answer from MichaelBridge: Answered on 19/07/2021

Hi Thamina

We have an installation you can contact. Please call 0330 041 2742.

Many thanks,


Question from Dave Crossling: Asked on 16/09/2020 What refrigerant is used

Answer from Nick: Answered on 17/09/2020

Question from MR MICHAEL BAXTER: Asked on 26/06/2020 Reading the above it says includes 5 metre copper pipe, I presume this is three off as there are three indoor units?

Answer from Leah: Answered on 26/06/2020
Hi Michael, thank you for your question. I can confirm there is 3x5m copper pipe for all 3 rooms! Thanks, Leah
