electriQ Easy-Fit 9000 BTU A++ WiFi Smart Wall-Mounted Split Air Conditioner with Heat Pump and 4.5-Meter Pipe Kit

SKU: eIQ-9WMINV Quickfind Code: 879042

This product is no longer available.

Product Options
Room Size

The details

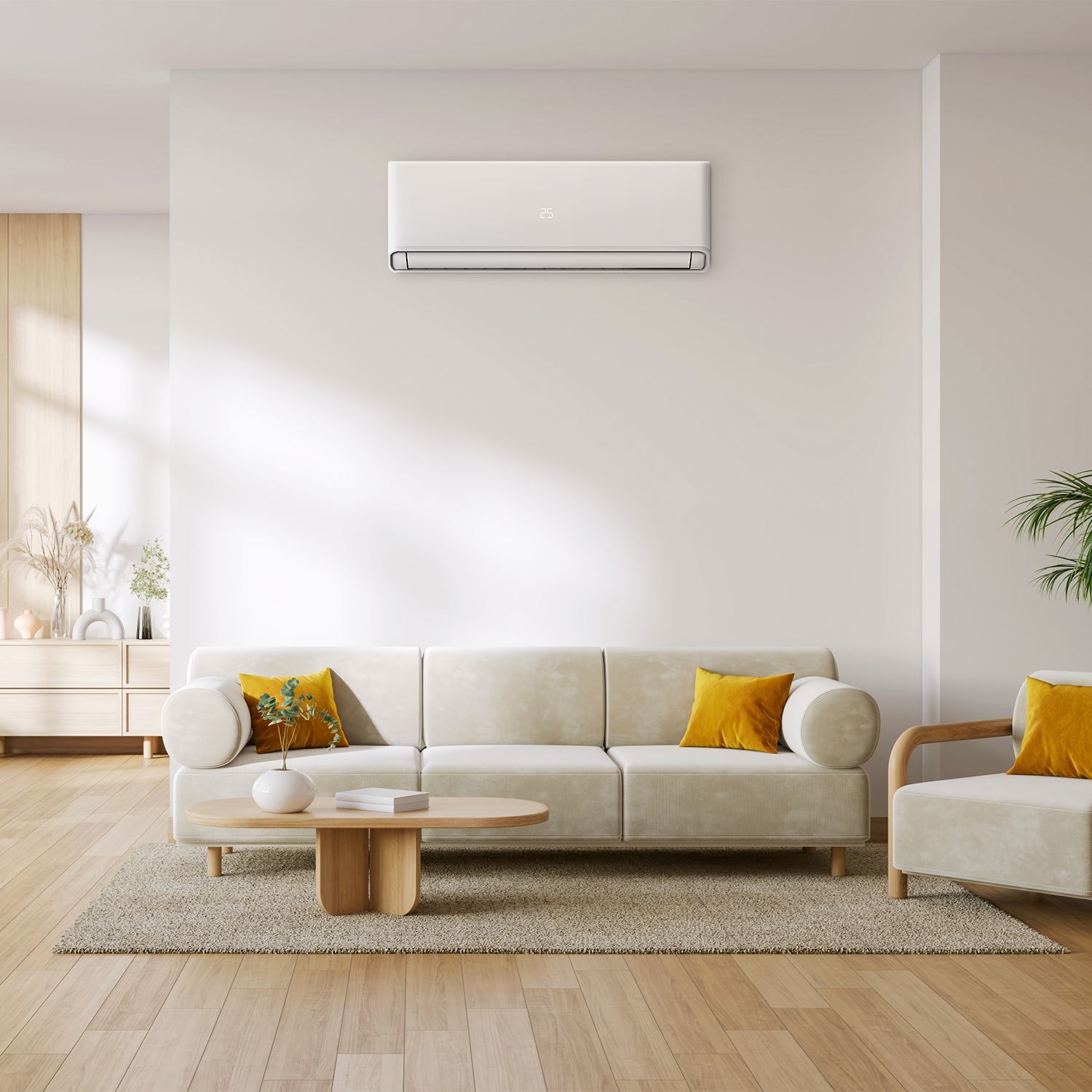

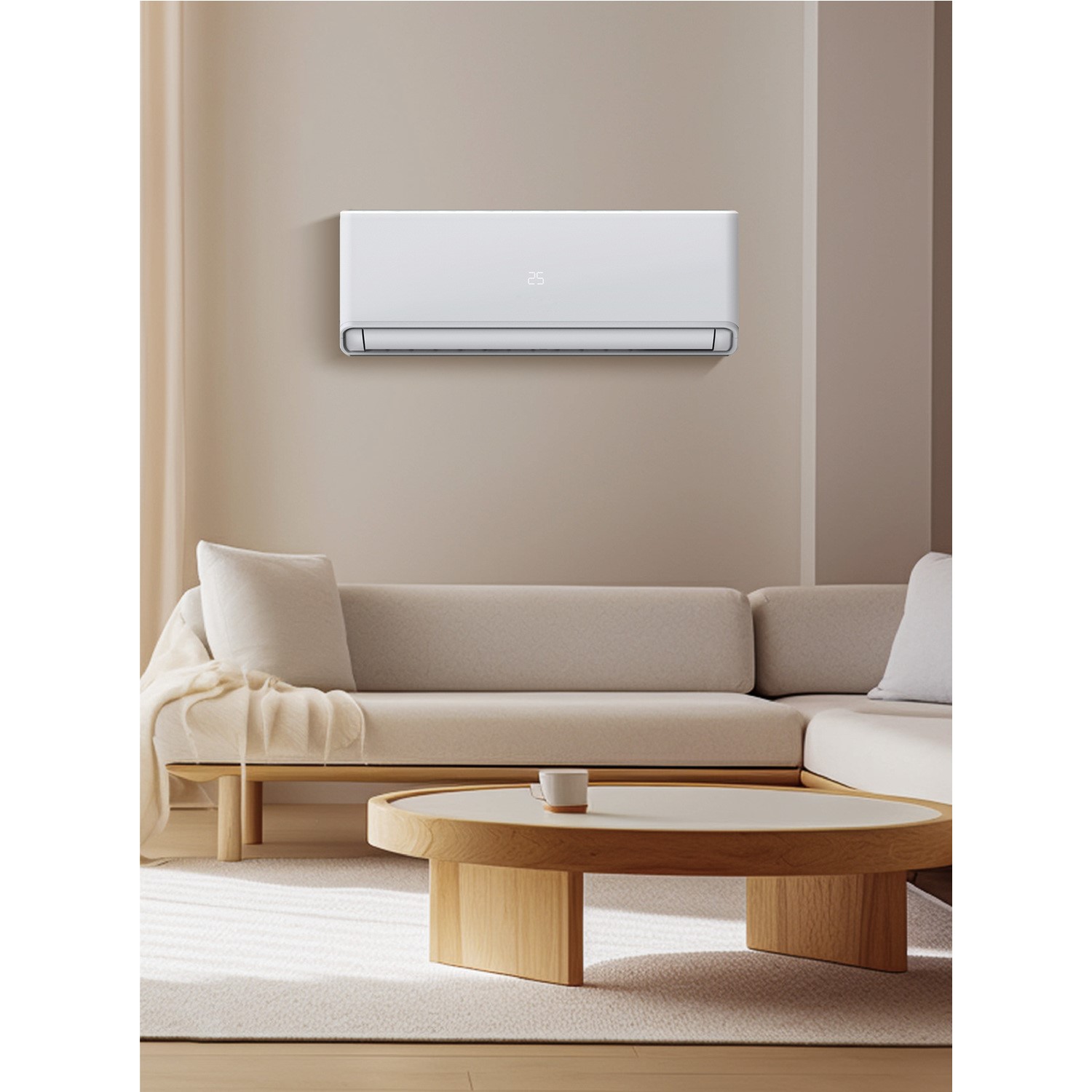

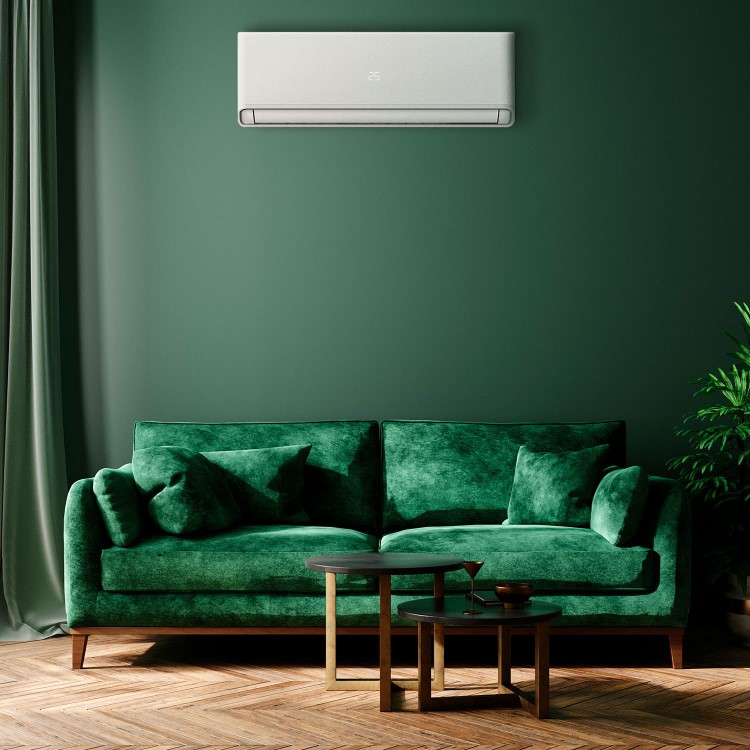

This eco-friendly electriQ air conditioner offers superior performance for cooling or heating rooms up to 26 sqm in size. It features built-in Wi-Fi functionality, so you can easily monitor and manage the air conditioner's settings from practically anywhere using your smart device, helping you save on energy bills. It boasts the very latest HFC-free compressor inverter technology, which makes it exceptionally quiet and energy-efficient to run, compared to non-inverter equivalents. Plus, it also functions as a dehumidifier to help remove excess moisture, improving the air quality in your room and making it more comfortable to breathe. Customise your AC with an alternative front panel - Available in champagne, black or silver see (We also recommend) tab.

Essential info

  • Outputs 9000 Btu/h (variable speed inverter)
  • Energy rating: A++ (Cooling) /A+ (Heating)
  • Super DC inverter with energy-saving inverter technology
  • Titanium gold heat exchanger reduces bacteria & mould
  • Cooling, Heating & Dehumidifying
  • Easy Fit 4.5 metre (1.5m+3m) pipe and cable kit supplied as standard (Optional 10-metre pipe kit available)
  • Does not require an F-Gas registered engineer or specialist equipment for typical installation – everything you need is supplied
  • Eco Friendly: Using the latest R290 refrigeration gas with zero ozone depletion potential (ODP) and lowest possible global warming potential (GWP)
  • Maximum pipe run: 12 metres
  • Heat Pump for efficient heating
  • Digital White LED temperature and function display
  • Cooling capacity: 2.6 kW
  • Heating capacity: 2.62 kW
  • SCOP: 4.2 / SEER: 6.2
  • 5-year warranty (see user manual)
  • 24 Hour Timer
  • Self-diagnostic function
  • Sleep Mode – Ultra quiet
  • Turbo Mode for faster cooling or heating
  • Swing Up/Down function for improved cooling or heating airflow
  • Manually Adjustable Left/Right Louvres for Custom Air Direction
  • Auto Restart
  • L x W x H: 700 x 290 x 190mm (Indoor)
  • L x W x H: 720 x 255 x 520mm (Outdoor)
  • Weight: 8.5Kg (Indoor)
  • Weight: 30Kg (Outdoor)
  • Warranty: 2 years parts & labour+3 years parts



What is in the box?

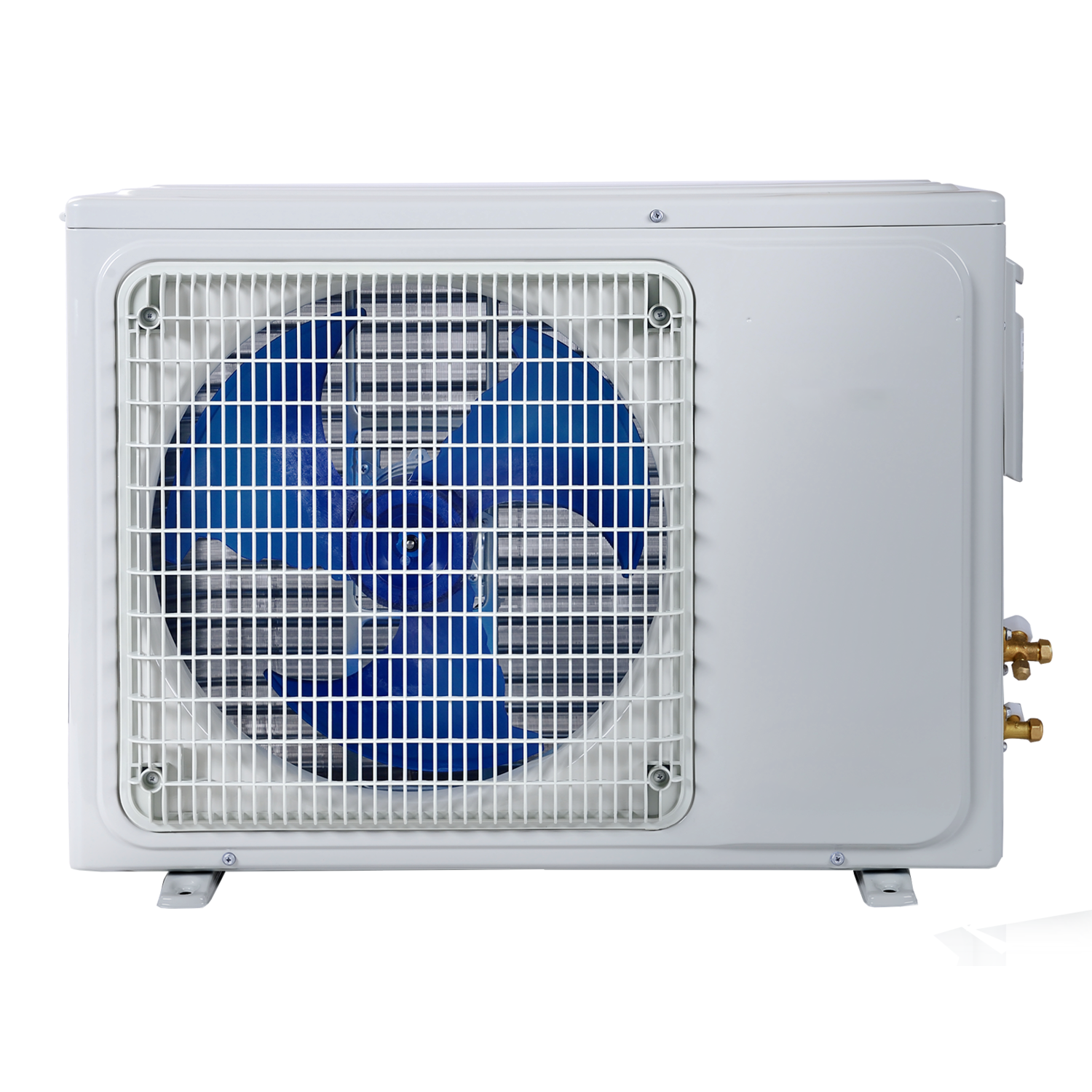

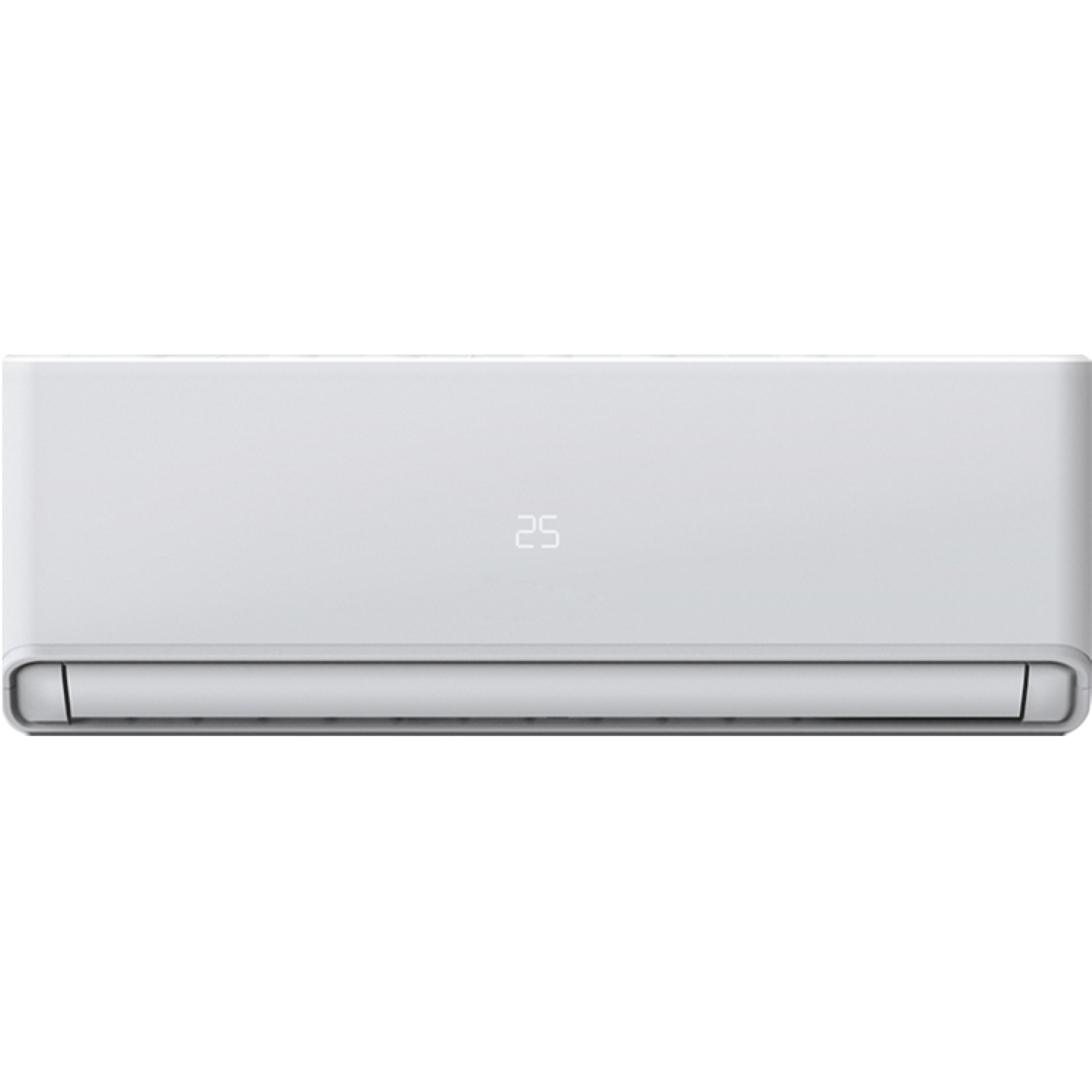

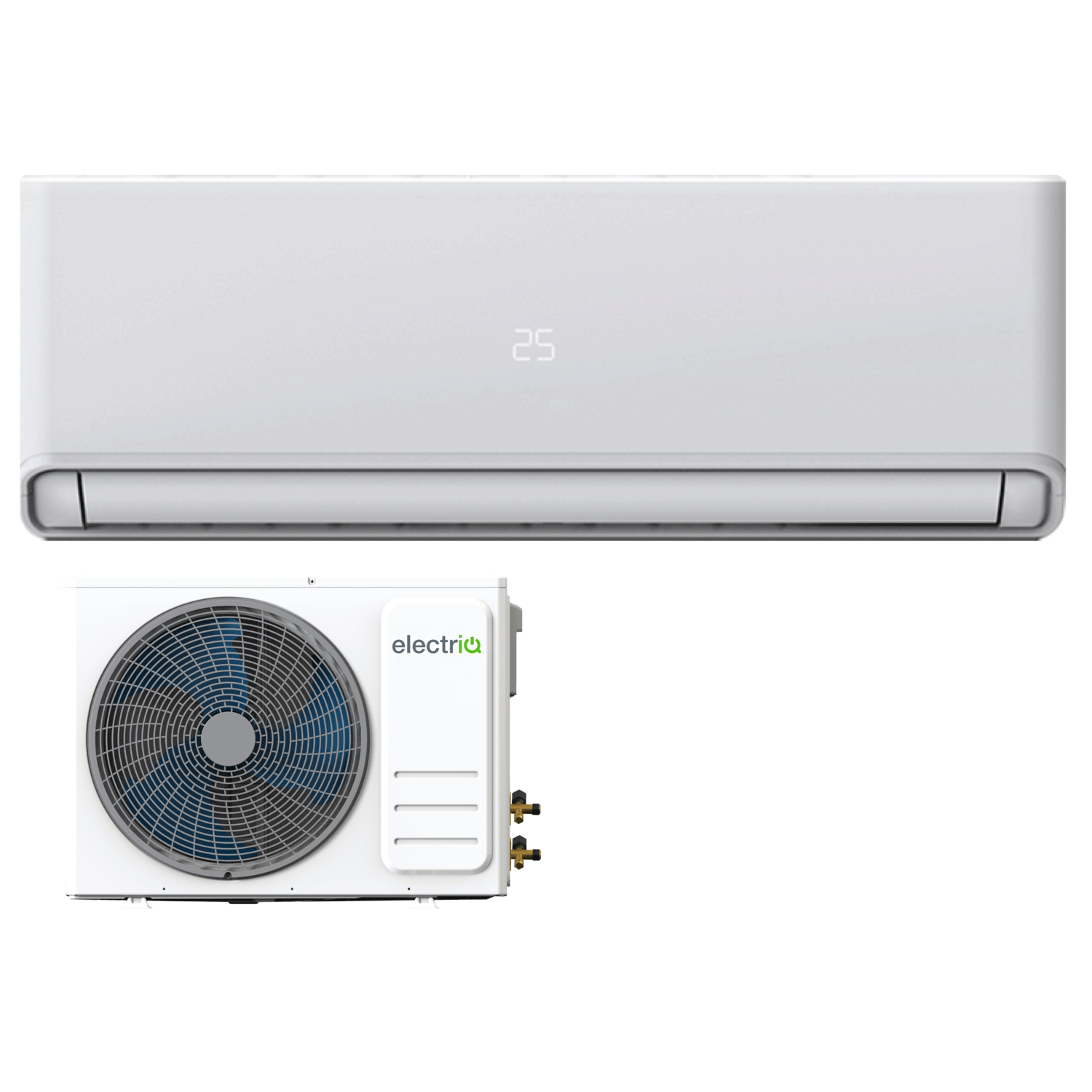

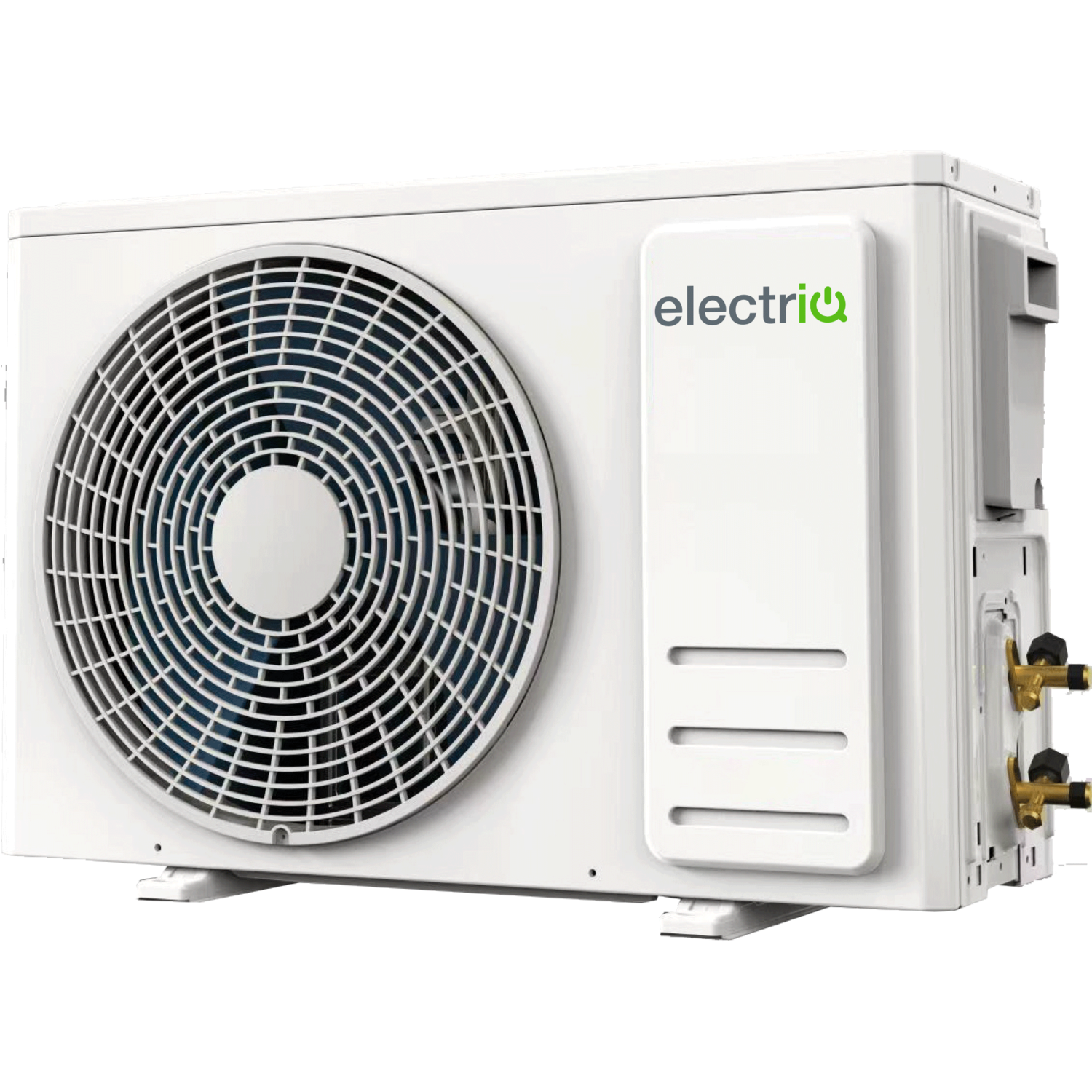

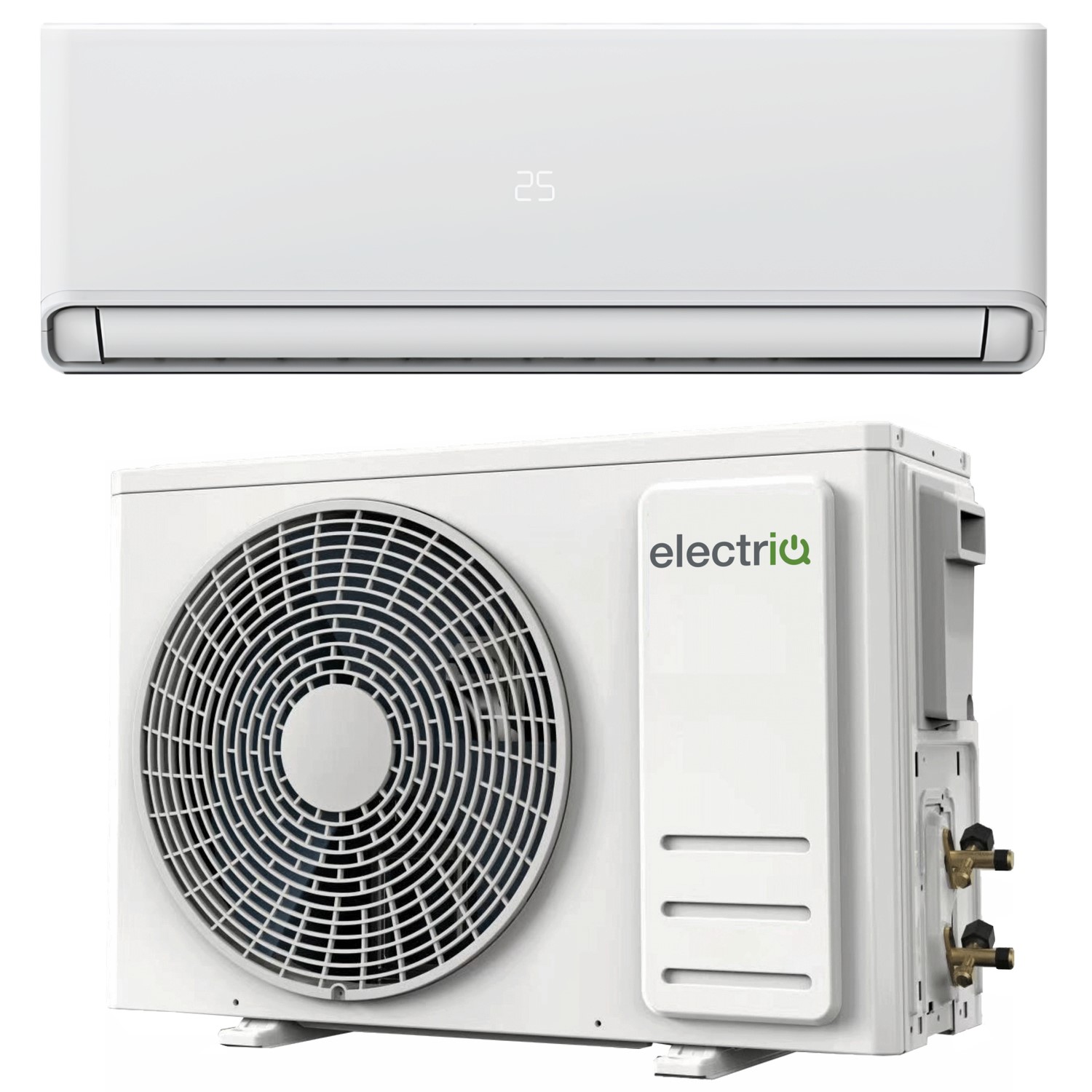

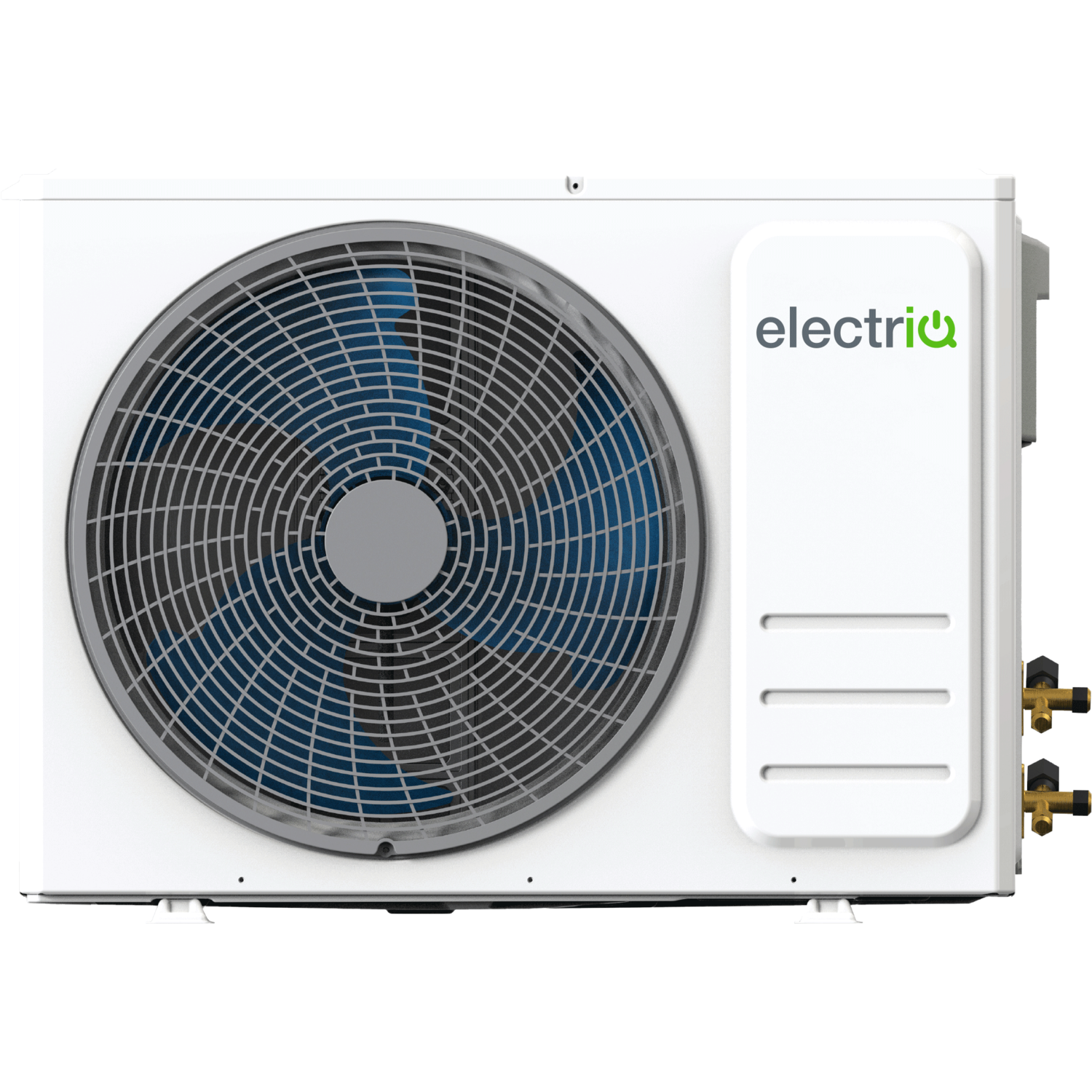

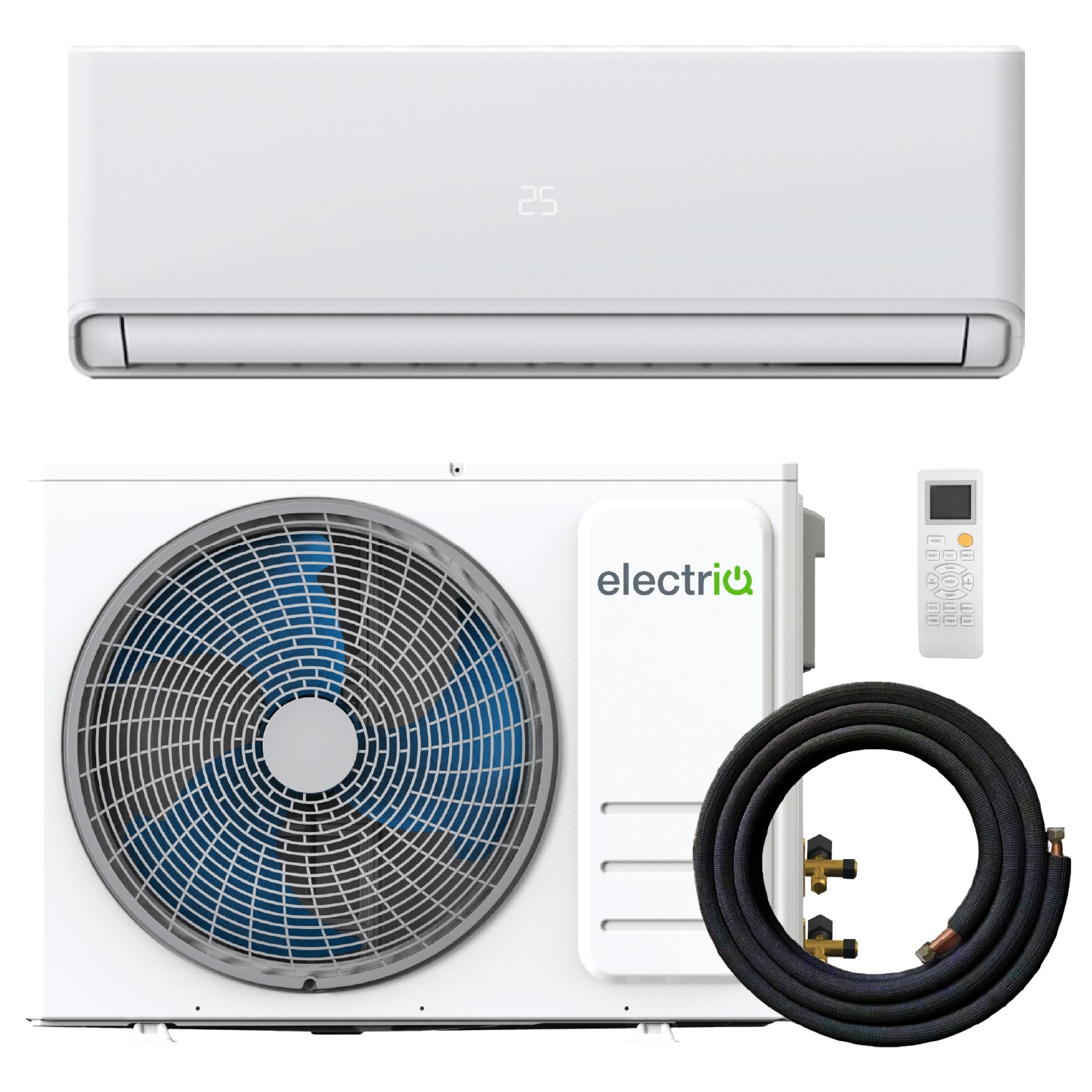

The model is an easy-install DC Inverter that is comprised of two units. There is the internal unit which is mounted on the wall of the room you wish to cool supplied with the supplied indoor wall bracket and the 1.5 meters set of copper pipes which connects to the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required) on the outside. Also in the box, there is a 3-metre coil of interconnecting copper pipe, a full-length electrical cable and a remote control.

How to Install

This advanced air conditioner uses environmentally friendly and efficient HFC-free refrigerant. Unlike most split air conditioners on the market, this air conditioner does not contain fluorinated gases which have high Global Warming Potential and are harmful to the environment. Therefore it does not require installation by an F-Gas registered engineer or specialist equipment for typical installation. The person installing the unit must understand the installation manual, be aware of the safety precautions required and be confident they can complete the installation before starting. Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipe kit enabling the person to easily install them. The indoor unit should be fitted to the wall using the mounting plate supplied in the box. The condenser should be fixed on the ground or wall-mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with 4.5-metre copper pipe and electrical cable which reduces the need to purchase additional parts.

How does it work?

The outside unit takes the heat from the room and dissipates it outside. The internal unit sets the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well as cooling.



Question from Russell Burrows: Asked on 13/06/2023 What power does the unit require? Can you send an install PDF please

Answer from ErikaEsteban: Answered on 13/06/2023

Hi Russell! For more information regarding this unit, kindly refer to this link for the PDF of the user and instruction manual. See link: https://www.aircondirect.co.uk/files/pdf/eIQ-9_12WMINV_R290%20Split%20user%2020200426.pdf. Thanks, Erika

Question from David Jones: Asked on 12/06/2023 You you have an installers guide so i can see what's involved with installing

Answer from ErikaEsteban: Answered on 12/06/2023

Hi David! For more info regarding installation, kindly refer to this user and installation manual. See link; https://www.appliancesdirect.co.uk/files/pdf/ElectrIQ_Split_manual_V2%2020180730.pdf. I hope this helps!


Thanks,
Erika

Question from Mike Thornton: Asked on 23/09/2020 Does it have a noise rating in db?

Answer from Nick: Answered on 24/09/2020
The indoor unit starts from 30db in quiet mode and reaches a maximum of about 45 at full fan mode.

Question from Brian Robinson: Asked on 16/09/2020 Is the extra 3mtr pipe precharged or can it be cut and solder jointed to required length. Don't want to have to position the outside unit at the extent of the pipe length .

Answer from Nick: Answered on 17/09/2020
For excess pipe, you can gently coil it around the back of the unit. The pipe is not pre-charged so if you do want it to cut it, make sure it is not switched on and ask an engineer to do this for you. The indoor unit comes with 1.5 metres (soldered to the main unit), the 3 metre is an extension to the outdoor unit so you could remove the 3 metre pipe completely

Question from Andy: Asked on 14/09/2020 I'm a little unsure of how much pipe I have to play with and how I waste away any excess pipe. I'm assuming that I need to use exactly what comes supplied and not less

Answer from Nick: Answered on 14/09/2020
Yes, you have to use the length provided. It comes with a 1.5 meter pre-connected and there is a free 3 meter extra pipe if you need something longer. You cannot cut the 1.5 meter pipe.
