This bundle includes :
IQool Plus 9000 BTU Smart A+++ Wall Split Air Conditioner Heat Pump and 5-Meter Pipe Kit Included
1 x StayCool Wall Split Air Conditioner Installation for Easy Fit Units
1 x Air Conditioning Condenser Wall Mounting Brackets up to 90 kgs. 9000 to 24000 BTU
1 x Extended pipe kit for installation
1 x High External Wall installation
1 x High Internal Wall installation
What stands out

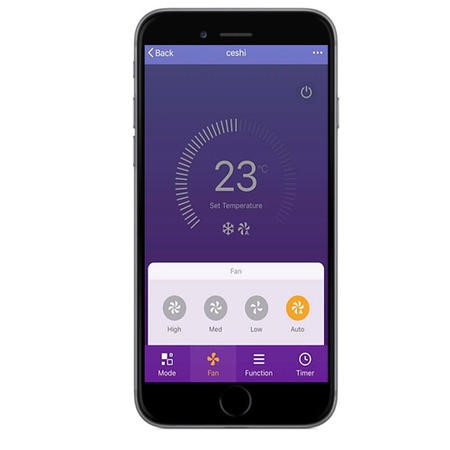

• Manage temp & schedule via smartphone for ultimate control
• Year-round use: cool, heat, & clean air with ease
• Dehumidify & remove excess moisture for added comfort
• A+++/A++ rated for efficient cooling & heating all year
• Powerful 9000 BTU for cooling large areas up to 26m²
Follow Me mode: adjusts temp based on the location of the remote
• Sleep mode: perfect for using at night when sleeping
Self-clean function & blue fins for low maintenance costs
The details
Imagine controlling the temperature of your home or office from your smartphone, so you're greeted with a cosy room every time you arrive. Thanks to electriQ's latest air conditioner with built-in Wi-Fi, this is now a reality. Connect it to your home WiFi and use your smartphone to monitor and manage temperature, fan speed, and more from anywhere. For example, you can set it to turn on later if you're working overtime, to help avoid unnecessary energy waste.
It comes with the latest 'Follow Me Technology' that lets you adjust the thermostat based on the temperature of the room where the remote control is located. Just press the 'iFEEL' button on the remote and you'll get a comfortable temperature where you want, not where the air con wants! The child lock feature stops your kids playing with the air-con settings too.
It's designed with double the BTU rating for efficient cooling or heating of large areas, saving up to 60% on energy bills compared to non-inverter models. Plus, it's self-cleaning for long-term performance with minimal maintenance.
Essential Info
• Power Supply: 220-240V~ 50Hz, 1Ph

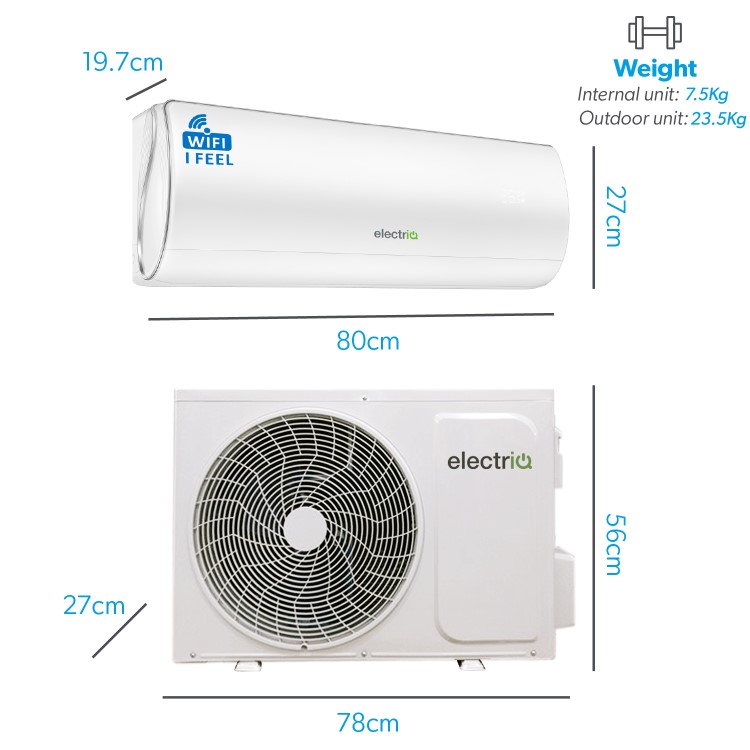

• Indoor Dimensions (L*W*H) (CM): 80.5x27x19.7
• Indoor packaged Dimensions (L*W*H) (CM): 89.8x27.3x32.8
• Net/Gross Weight (Kg): 7.5/9
• Outdoor Dimensions (L*W*H) (CM): 78x56x27
• Outdoor packaged Dimensions (L*W*H) (CM): 85.2x35.8x60
• Outdoor Net/Gross Weight (Kg): 25.3/29.3
• Air Flow (M3/h): 550
• Rated capacity Cooling (W): 2600 (660-3300)
• Rated capacity Heating (W): 2600 (660-3600)
• Power Input Cooling (W): 580 (250-1300)
• Power Input heating (W): 620 (250-1300)
• Current input Cooling (A): 2.7 (1.1-8.8)
• Current input Heating (A): 2.9 (1.1-9.0)
• SEER/SCOP Cooling (W/W): 8.7/A+++
• SEER/SCOP Heating (W/W): 4.6/A++
• Thermostat-off mode (W): 25
• Standby mode (W): 0.5
• Copper Pipe Type length: 5m
• Liquid side / Gas Side (mm/inch): 6.35 (1/4) + 9.52 (3/8)
• Max. Refrigerant pipe length: 25m
• Refrigerant type/weight: R32/600g

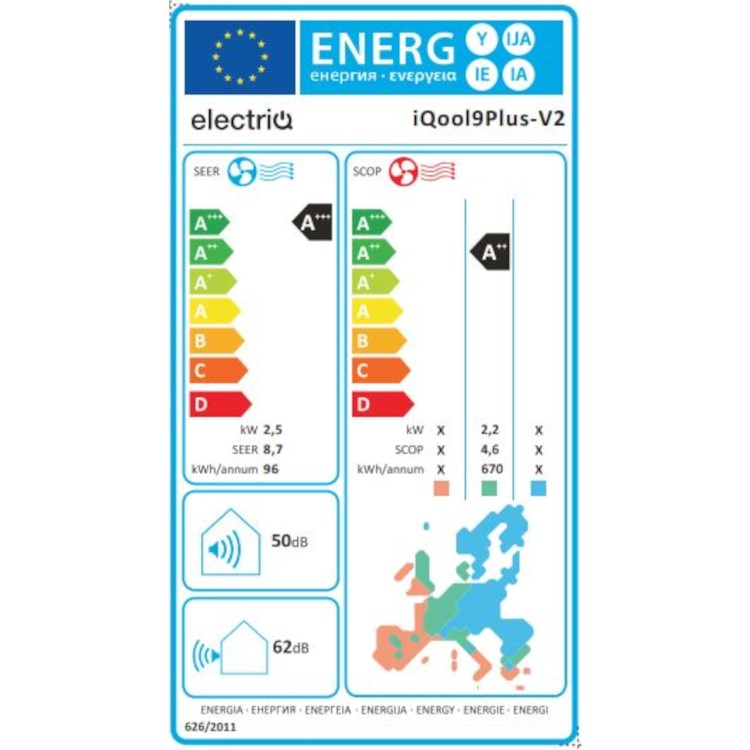

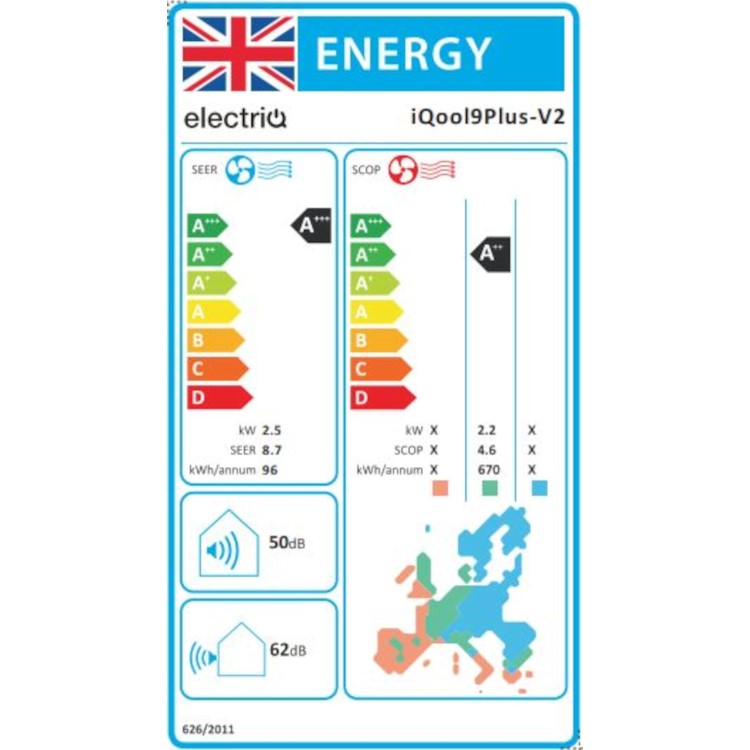

• A+++/A++ Rating (ERP Certified)
• Super DC Inverter with GMCC Compressor
• Cooling, Heating & Dehumidifying
• Easy Fit with 5 meters pipe and cable kit supplied as standard
• Energy Saving Inverter Technology
• Heat Pump for efficient heating
• Ultra-Quiet Operation
• Digital White Led temperature and function display
• 24 Hour Timer
• Self-diagnostic function
• Save energy by using the ECO mode
• Auto Restart when electricity is restored after a power cut
• Child lock for added peace of mind
• Installed with filters to remove odours, dust and pollen
• Optional advanced air filters are available
• Warranty: 2 years parts & labour +3 years parts
Tech stuff
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed and they come with a pre-flared pipe kit, enabling the qualified fitter to easily install them. The indoor unit should be fitted to the wall using a mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall, using the optional wall-mounting bracket. The unit comes supplied with a 5-metre copper pipe and electrical cable to help reduce the cost of purchasing additional parts. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing.
These units contain a gas which is governed by F-Gas regulations. The gas must be handled by a qualified F-Gas personnel. 2 Year warranty is subject to commissioning by qualified F-Gas engineers. 5 Years extended parts warranty is subject to annual service. Further information on the requirements and ensuring the engineer is qualified can be found at: Government Guidance
GMCC is one of the largest manufacturers of compressors in the world and they have a strategic partnership with Toshiba, being used as RD facility and manufacturing plant by Toshiba. GMCC compressors are using the latest Toshiba technology and they go through strict testing.
About your installation
• There are more than 5 meters between the indoor and the outdoor unit, so this air conditioner installation includes an extended pipe kit. The extended pipe covers distances from 6 to15 metres.
• The air conditioning units are being installed on a high external wall, 2nd floor or higher. There are more safety risks involved. The installer may need to use scaffolding, ladders or special lifting equipment.
• The air conditioning units are being installed on a high internal wall. As this is above 2 metres, there are more safety risks involved. Ladders are likely to be used by the installer.
